IDEAL C4 Canadian Wiretwist Connectors Tub of 500, Model 30-3C4*

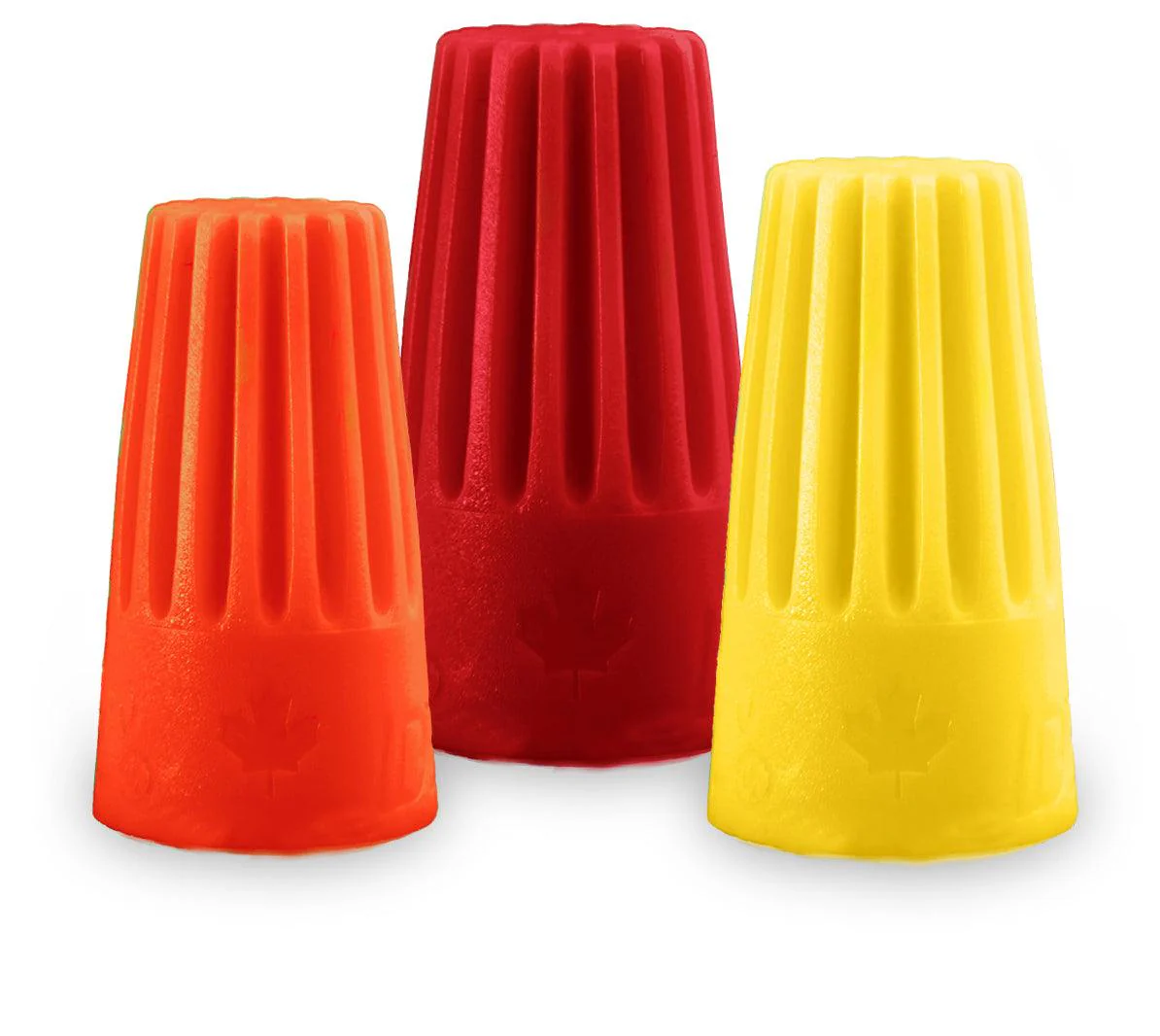

Product image 1

IDEAL C4 Canadian Wiretwist Connectors Tub of 500, Model 30-3C4*

Description

The IDEAL Yellow Wiretwist ConnectorsĀ areĀ made in Canada. The C4 are good fromĀ 18 to 10 AWG (min. 2x18 AWG / max. 3x14 AWG)

Comes in aĀ tubĀ of 500 connectors.

Features

  • Made in Canada
  • Heavy gauge outer shell for superior dielectric performance
  • Stay set spring with enhanced corrosion resistance
  • No pre-twisting required
  • CSA Certified (CSA 22.2 #188 Certified) and UL Listed for 600V maximum building wire^ and 1000V maximum for signage/fixture applications
  • Wire combinations from 18 to 10 AWG (min. 2x18 / max. 3x14)
  • Operating temperature up to 105 ĀŗC / 221 ĀŗF
  • Flame-retardant shell

Technical Information


Twist-On Style: Non-Wing
Termination Method: Twist-On
Color: Yellow
Minimum Wire Gauge: 18 AWG
Maximum Wire Gauge: 10 AWG
Maximum Rated Voltage: 600V
Quantity:Ā 100/pack

Description

The IDEAL Yellow Wiretwist ConnectorsĀ areĀ made in Canada. The C4 are good fromĀ 18 to 10 AWG (min. 2x18 AWG / max. 3x14 AWG)

Comes in aĀ tubĀ of 500 connectors.

Features

  • Made in Canada
  • Heavy gauge outer shell for superior dielectric performance
  • Stay set spring with enhanced corrosion resistance
  • No pre-twisting required
  • CSA Certified (CSA 22.2 #188 Certified) and UL Listed for 600V maximum building wire^ and 1000V maximum for signage/fixture applications
  • Wire combinations from 18 to 10 AWG (min. 2x18 / max. 3x14)
  • Operating temperature up to 105 ĀŗC / 221 ĀŗF
  • Flame-retardant shell

Technical Information


Twist-On Style: Non-Wing
Termination Method: Twist-On
Color: Yellow
Minimum Wire Gauge: 18 AWG
Maximum Wire Gauge: 10 AWG
Maximum Rated Voltage: 600V
Quantity:Ā 100/pack

$9.67

Original: $27.62

-65%
IDEAL C4 Canadian Wiretwist Connectors Tub of 500, Model 30-3C4*ā€”

$27.62

$9.67

Description

Description

The IDEAL Yellow Wiretwist ConnectorsĀ areĀ made in Canada. The C4 are good fromĀ 18 to 10 AWG (min. 2x18 AWG / max. 3x14 AWG)

Comes in aĀ tubĀ of 500 connectors.

Features

  • Made in Canada
  • Heavy gauge outer shell for superior dielectric performance
  • Stay set spring with enhanced corrosion resistance
  • No pre-twisting required
  • CSA Certified (CSA 22.2 #188 Certified) and UL Listed for 600V maximum building wire^ and 1000V maximum for signage/fixture applications
  • Wire combinations from 18 to 10 AWG (min. 2x18 / max. 3x14)
  • Operating temperature up to 105 ĀŗC / 221 ĀŗF
  • Flame-retardant shell

Technical Information


Twist-On Style: Non-Wing
Termination Method: Twist-On
Color: Yellow
Minimum Wire Gauge: 18 AWG
Maximum Wire Gauge: 10 AWG
Maximum Rated Voltage: 600V
Quantity:Ā 100/pack
