Klein Tools Digital Multimeter, TRMS Auto-Ranging, 1000V, Temp, Low Impedance, Model MM720*
Description

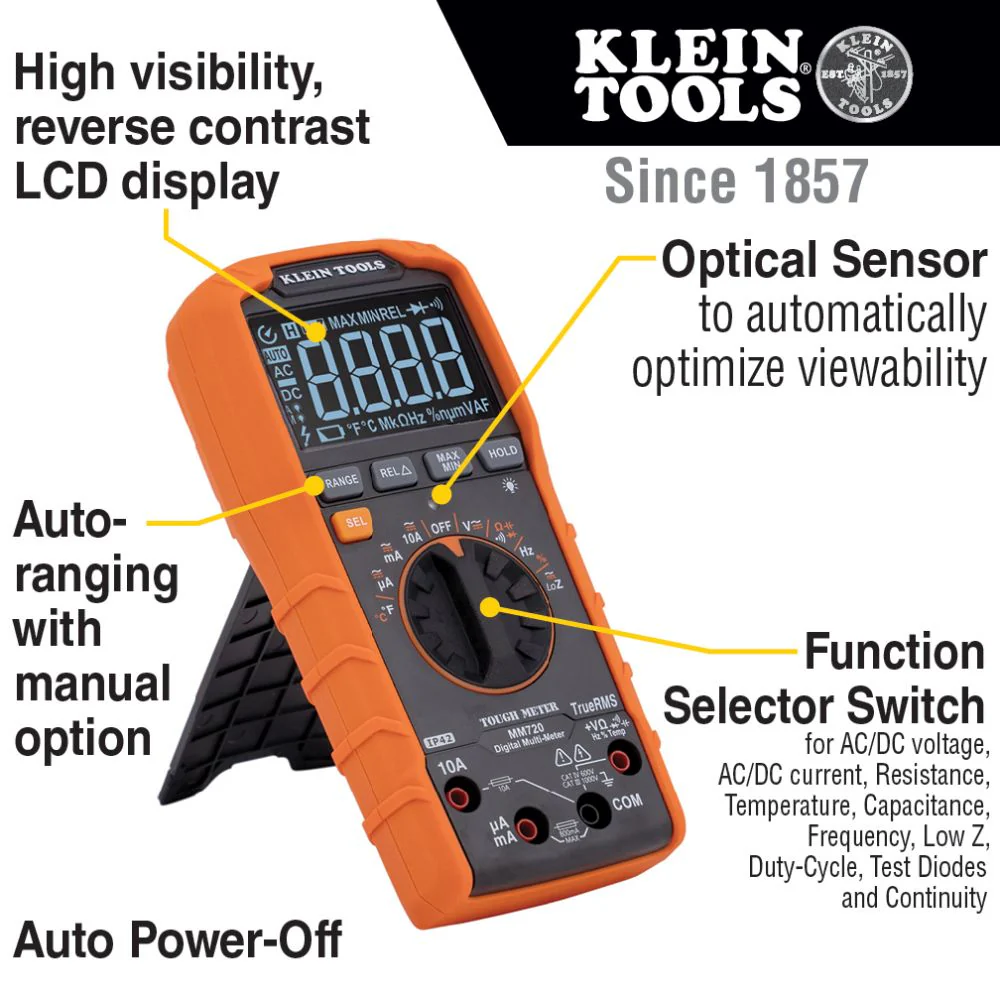

Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display with an optical sensor to automatically optimize viewability in dark or bright ambient lighting.
Features

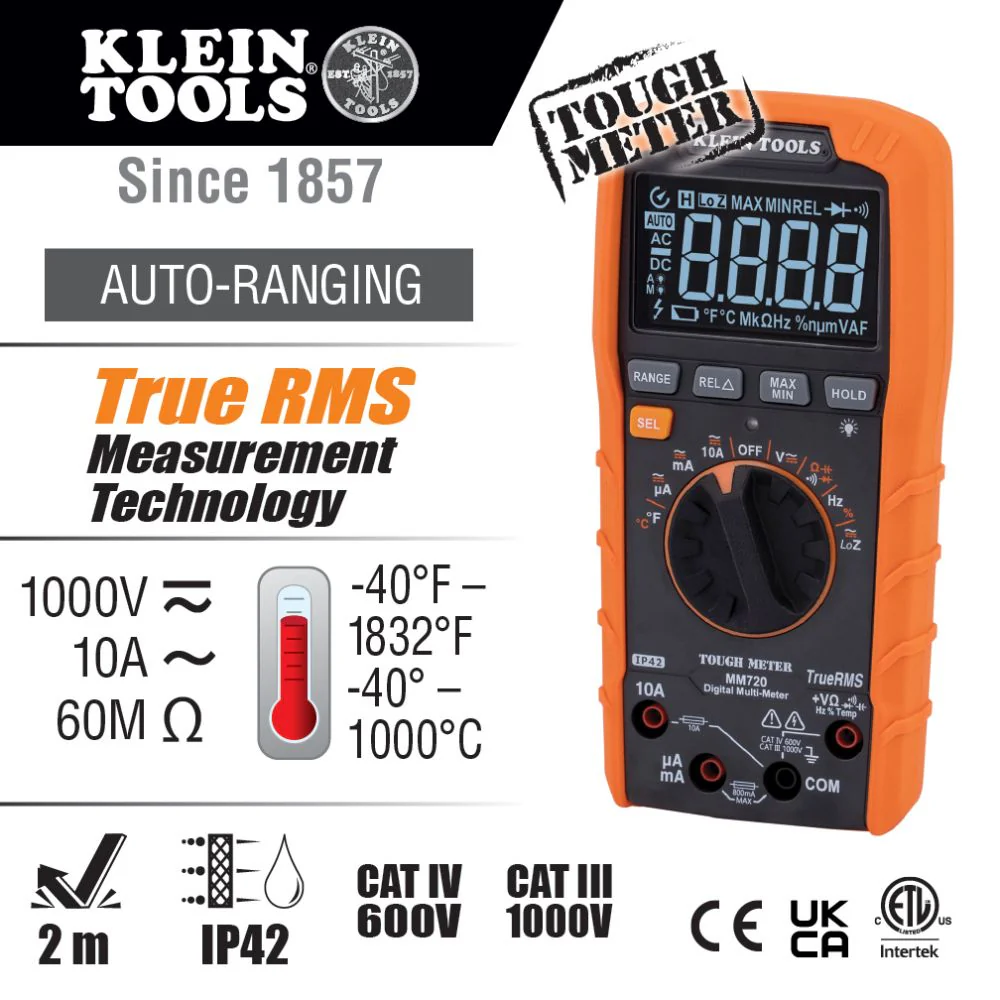

- Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
- Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity
- High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Low battery indicator and easily accessible battery and fuse compartment
- Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42

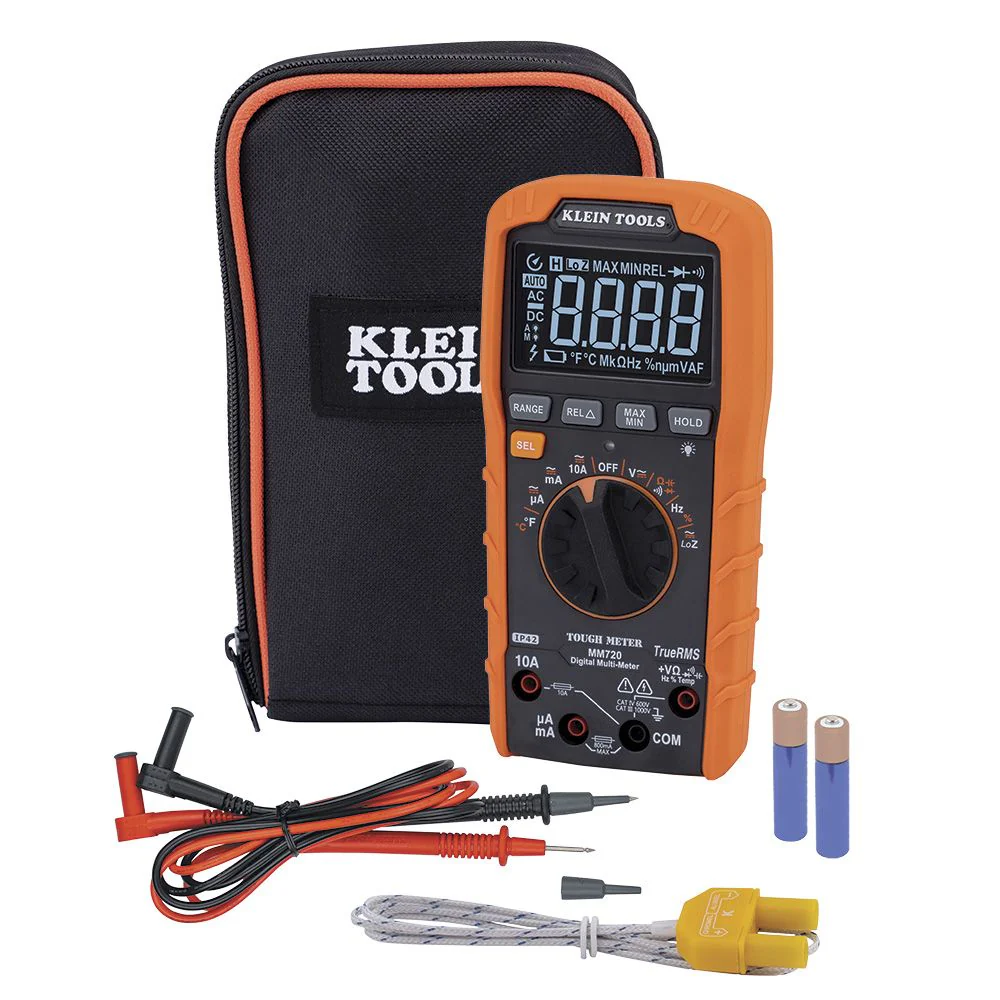

- Includes carrying pouch, test leads, thermocouple with adapter, and batteries
- CAT IV 600V Safety Rating
- For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
Technical Information
Type: Digital Multimeter
Application: Testing and Measuring Voltage
Special Features: High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
Material: ABS, Electrical Components
Batteries: 2 x AAA
Drop Protection: 6.6' (2 m)
Display: 6000 Count LCD
Color: Orange/Black
Functions: Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current and 60MĪ© Resistance Plus Temperature, Capacitance, Frequency, Duty-Cycle, Diodes and Continuity
Voltage: 1000V AC/DC
Frequency: 1 Hz - 500 KHz
Current: 10A AC/DC
Capacitance: 6000 ĀµF
Ohms (Resistance): 60MĪ©
Ingress Protection: IP42
Standard: CAT IV 600V; CAT III 1000V
Temperature Range: -40Ā° to 1832Ā°F (-40Ā° to 1000Ā°C)
Included: Carrying Case, Test Leads, Thermocouple, Batteries, and User Manual
Overall Length: 6.94'' (17.6 cm)
Overall Height: 1.88'' (4.7 cm)
Overall Width: 3.37'' (8.5 cm)
Weight: 12.2 oz (345 g)
Document
Description
Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display with an optical sensor to automatically optimize viewability in dark or bright ambient lighting.
Features
- Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
- Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity
- High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Low battery indicator and easily accessible battery and fuse compartment
- Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42
- Includes carrying pouch, test leads, thermocouple with adapter, and batteries
- CAT IV 600V Safety Rating
- For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
Technical Information
Type: Digital Multimeter
Application: Testing and Measuring Voltage
Special Features: High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
Material: ABS, Electrical Components
Batteries: 2 x AAA
Drop Protection: 6.6' (2 m)
Display: 6000 Count LCD
Color: Orange/Black
Functions: Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current and 60MĪ© Resistance Plus Temperature, Capacitance, Frequency, Duty-Cycle, Diodes and Continuity
Voltage: 1000V AC/DC
Frequency: 1 Hz - 500 KHz
Current: 10A AC/DC
Capacitance: 6000 ĀµF
Ohms (Resistance): 60MĪ©
Ingress Protection: IP42
Standard: CAT IV 600V; CAT III 1000V
Temperature Range: -40Ā° to 1832Ā°F (-40Ā° to 1000Ā°C)
Included: Carrying Case, Test Leads, Thermocouple, Batteries, and User Manual
Overall Length: 6.94'' (17.6 cm)
Overall Height: 1.88'' (4.7 cm)
Overall Width: 3.37'' (8.5 cm)
Weight: 12.2 oz (345 g)
Document
Original: $92.55
-65%$92.55
$32.39Description
Description
Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display with an optical sensor to automatically optimize viewability in dark or bright ambient lighting.
Features
- Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
- Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity
- High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Low battery indicator and easily accessible battery and fuse compartment
- Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42
- Includes carrying pouch, test leads, thermocouple with adapter, and batteries
- CAT IV 600V Safety Rating
- For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
Technical Information
Type: Digital Multimeter
Application: Testing and Measuring Voltage
Special Features: High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
Material: ABS, Electrical Components
Batteries: 2 x AAA
Drop Protection: 6.6' (2 m)
Display: 6000 Count LCD
Color: Orange/Black
Functions: Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current and 60MĪ© Resistance Plus Temperature, Capacitance, Frequency, Duty-Cycle, Diodes and Continuity
Voltage: 1000V AC/DC
Frequency: 1 Hz - 500 KHz
Current: 10A AC/DC
Capacitance: 6000 ĀµF
Ohms (Resistance): 60MĪ©
Ingress Protection: IP42
Standard: CAT IV 600V; CAT III 1000V
Temperature Range: -40Ā° to 1832Ā°F (-40Ā° to 1000Ā°C)
Included: Carrying Case, Test Leads, Thermocouple, Batteries, and User Manual
Overall Length: 6.94'' (17.6 cm)
Overall Height: 1.88'' (4.7 cm)
Overall Width: 3.37'' (8.5 cm)
Weight: 12.2 oz (345 g)
