Description

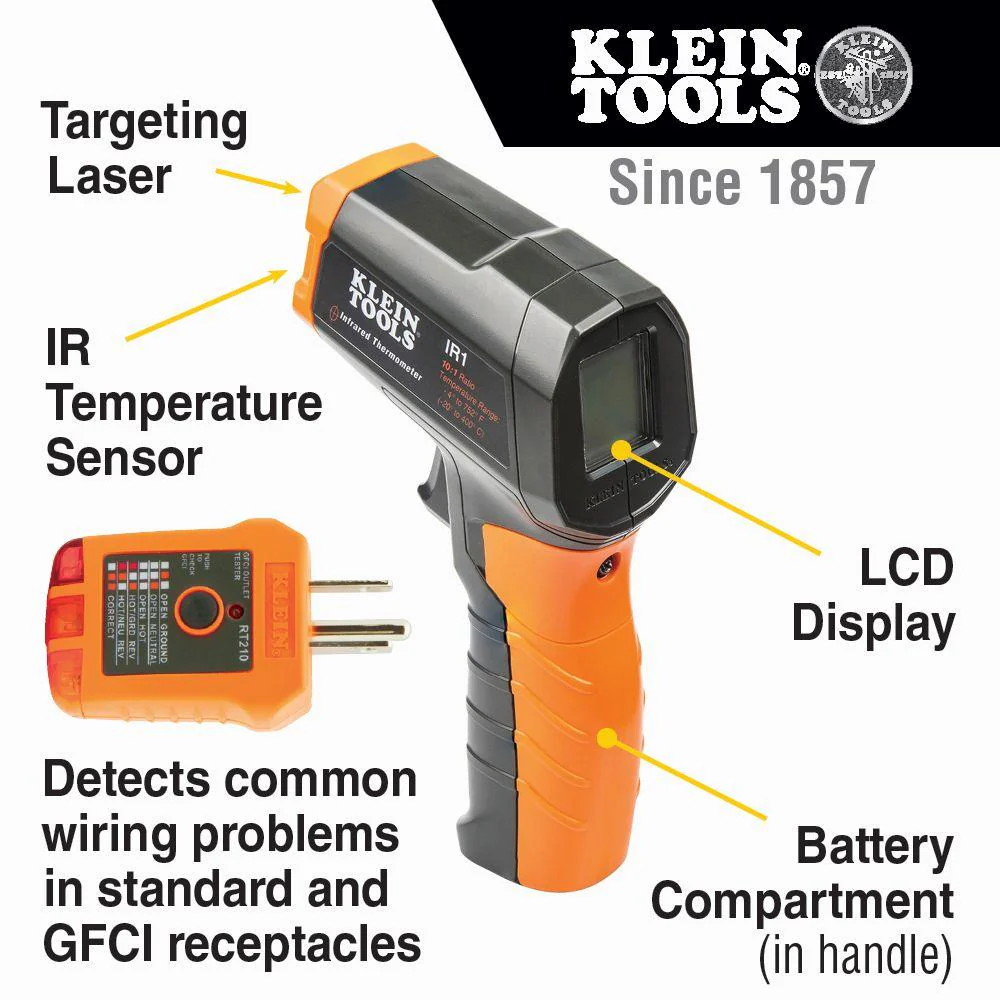

The Klein Tools IR1KIT includes the Infrared Thermometer (Cat. No. IR1) and GFCI Receptacle Tester (Cat. No. RT210). The IR1 infrared thermometer with a targeting laser has a wide measurement range from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius) and a 10:1 distance-to-spot ratio. The RT210 GFCI Receptacle Tester detects common wiring problems.

Benefits

• Infrared Thermometer (Cat. No. IR1) has an optical resolution (distance-to-spot) of 10:1
• GFCI Outlet Tester (Cat. No. RT210) detects common wiring problems in standard and GFCI receptacles
• Both products have a drop protection to 6.6-Foot (2 m)
• Infrared Thermometer has a wide measurement range from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
• Not a medical device; thermometer is NOT intended for use on people or animals
• Fixed emissivity of 0.95 for the Infrared Thermometer
• Infrared Thermometer includes custom pouch and a 9V battery
• ''Auto Power-Off'' feature of the Infrared Thermometer conserves and extends battery life
• Infrared Thermometer is Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002

Technical Information

Type: Infrared Thermometer with Targeting Laser
Application: Temperature Measurement and Electrical Testing
Special Features: Target Laser on IR1
Material: Plastic Housing, Electronic Components
Batteries: 1 x 9V
Distance to Spot: 10:1
Accuracy: ±4° F or ±2%; Accuracy Below Freezing is ±4° F Plus 0.2 Degrees Per Degree Below 32° F
Display: Digital Backlit
Display Resolution: 0.1F (0.1 C)
Response Time: <0.25s
Degree Format: F or C
Range: -4° to 752° F (-20° to 400° C)
Standard: IR1: EN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
Drop Protection: 6.6' (2 m)
Included: RT210 GFCI Receptacle Tester, Custom Pouch, and 1 x 9V Battery
Overall Length: 6.01'' (15.3 cm)
Overall Width: 1.24'' (3.1 cm)
Overall Height: 4.14'' (10.5 cm)
Weight: 7.1 oz (201 g)



Documents

Instruction Manual
