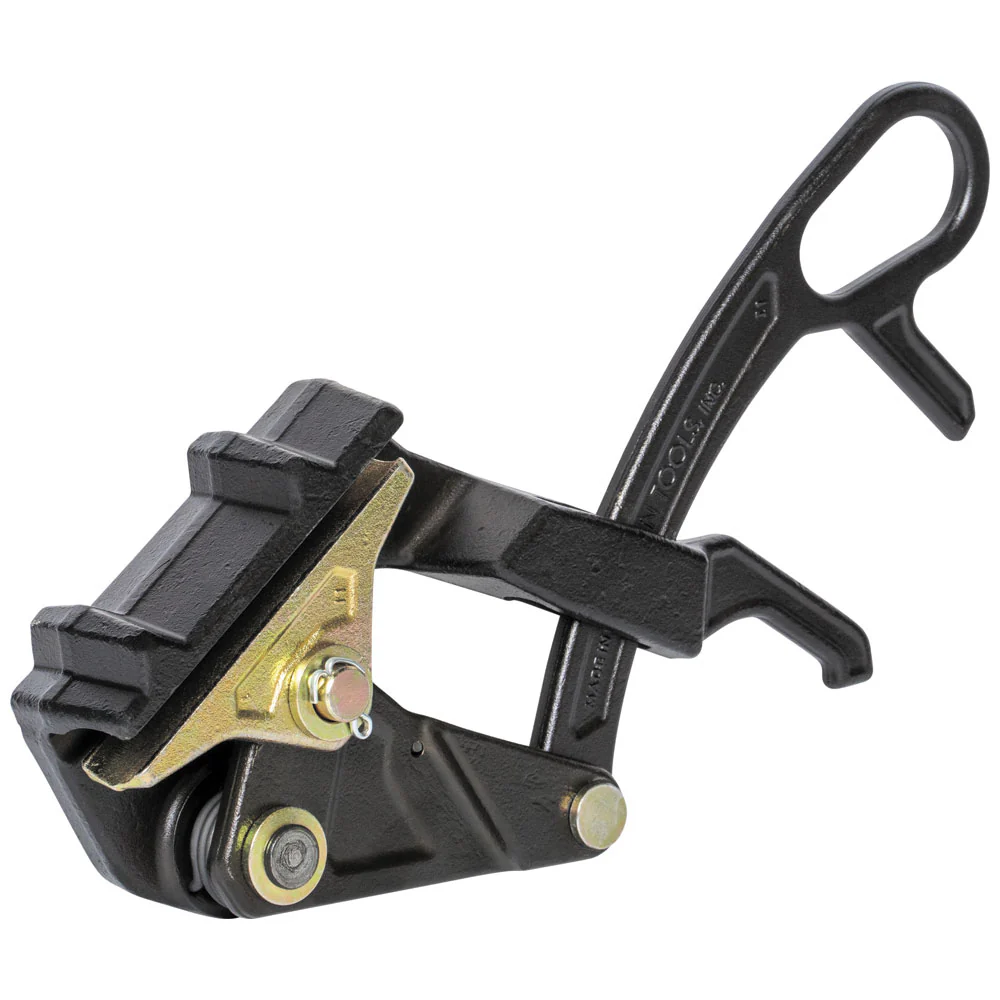

Klein Tools Wide Range Transmission Grip, Model 16499
Description
The Klein Tools Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).
Features
- Securely pulls ACSR, AAC and bare copper cables
- Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
- Fine Sawtooth jaw geometry provides greater grip strength
- Spring closes grip on cable to hold the initial position
- Made in the USA
- Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 12,000-Pound (5443 kg)
- Patent pending design
Technical Information
Type: Parallel Jaw Grip
Application: Wire Pulling
Special Features: One-Handed Grip
Overall Length: 13.1'' (33.3 cm)
Overall Height: 8.1'' (20.6 cm)
Overall Width: 2.4'' (6.1 cm)
Material: Steel
Cable Type: ACSR, AAC, Bare Copper
Cable Diameter: 0.68'' to 1.42'' (17.3 to 36.1 mm)
Hot Latch: N
Swing Latch: N
Spring: Y
Locking Handle: Y
Jaw Type: Round
Jaw Length: 4.85'' (12.3 cm)
Maximum Safe Load: 12,000 lb (5443 kg)
Weight: 8.1 lb (3.7 kg)
Document
Description
The Klein Tools Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).
Features
- Securely pulls ACSR, AAC and bare copper cables
- Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
- Fine Sawtooth jaw geometry provides greater grip strength
- Spring closes grip on cable to hold the initial position
- Made in the USA
- Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 12,000-Pound (5443 kg)
- Patent pending design
Technical Information
Type: Parallel Jaw Grip
Application: Wire Pulling
Special Features: One-Handed Grip
Overall Length: 13.1'' (33.3 cm)
Overall Height: 8.1'' (20.6 cm)
Overall Width: 2.4'' (6.1 cm)
Material: Steel
Cable Type: ACSR, AAC, Bare Copper
Cable Diameter: 0.68'' to 1.42'' (17.3 to 36.1 mm)
Hot Latch: N
Swing Latch: N
Spring: Y
Locking Handle: Y
Jaw Type: Round
Jaw Length: 4.85'' (12.3 cm)
Maximum Safe Load: 12,000 lb (5443 kg)
Weight: 8.1 lb (3.7 kg)
Document
Original: $509.04
-65%$509.04
$178.16Description
Description
The Klein Tools Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).
Features
- Securely pulls ACSR, AAC and bare copper cables
- Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)
- Fine Sawtooth jaw geometry provides greater grip strength
- Spring closes grip on cable to hold the initial position
- Made in the USA
- Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 12,000-Pound (5443 kg)
- Patent pending design
Technical Information
Type: Parallel Jaw Grip
Application: Wire Pulling
Special Features: One-Handed Grip
Overall Length: 13.1'' (33.3 cm)
Overall Height: 8.1'' (20.6 cm)
Overall Width: 2.4'' (6.1 cm)
Material: Steel
Cable Type: ACSR, AAC, Bare Copper
Cable Diameter: 0.68'' to 1.42'' (17.3 to 36.1 mm)
Hot Latch: N
Swing Latch: N
Spring: Y
Locking Handle: Y
Jaw Type: Round
Jaw Length: 4.85'' (12.3 cm)
Maximum Safe Load: 12,000 lb (5443 kg)
Weight: 8.1 lb (3.7 kg)
