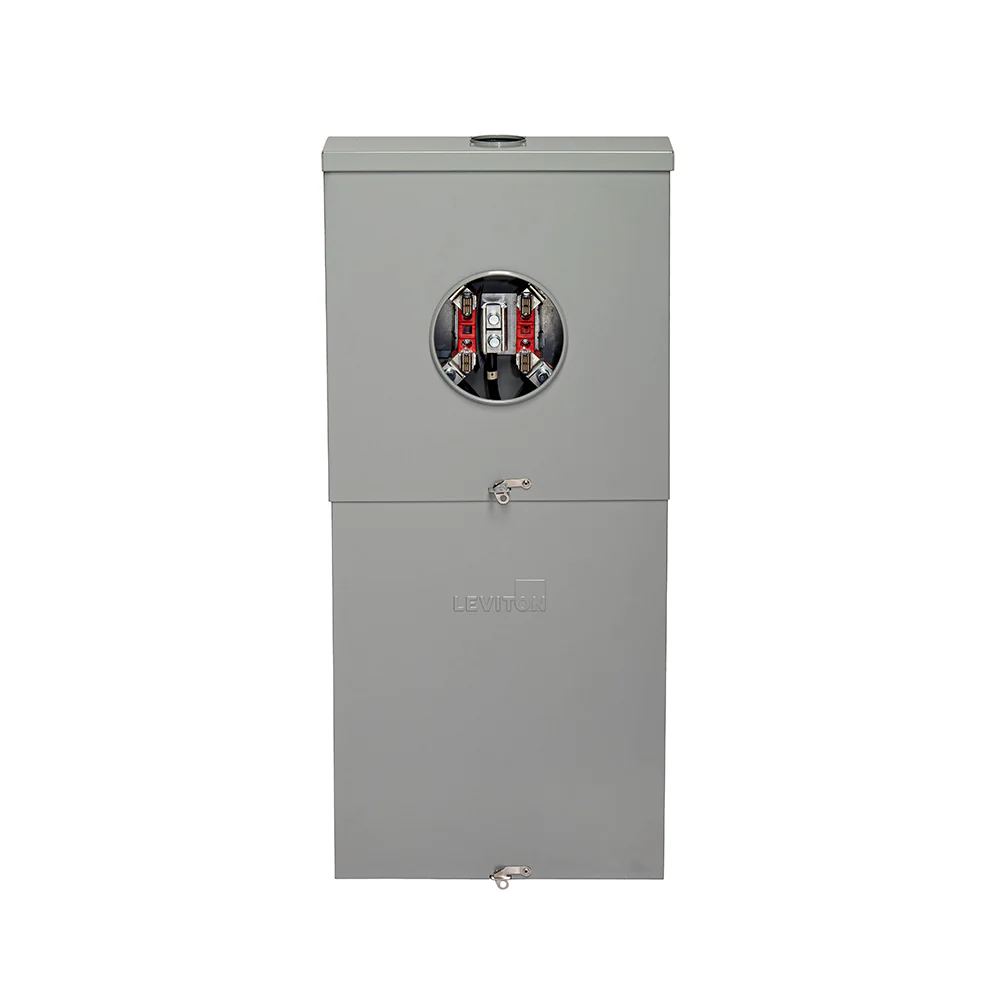

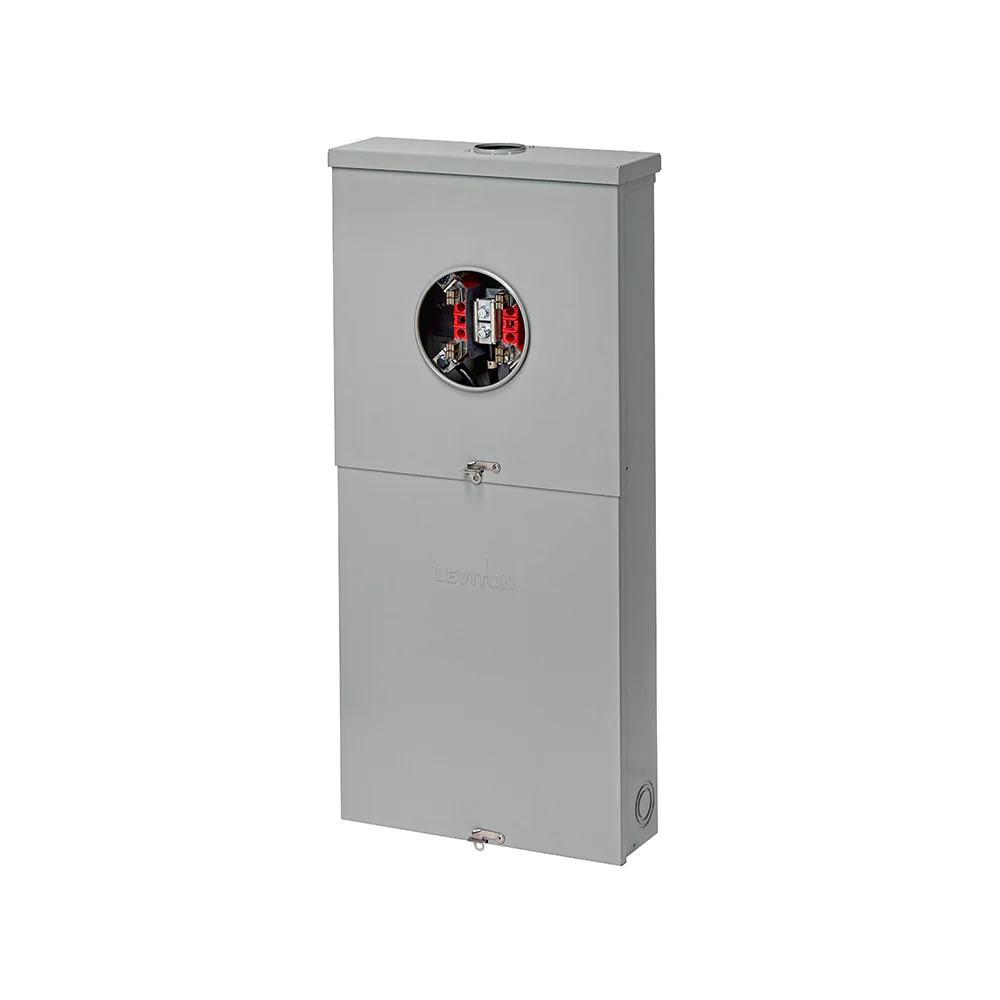

Leviton 200A 120/240V Outdoor Meter Main Combo, 8 Spaces, Ring Type, Model LS820-BRC*
Description
Outdoor Meter Main Combo with 200A Main Circuit Breaker Factory Installed, 8 Spaces, NEMA 3R Rated. Includes Enclosure, Ring-Type Door, and Feed-Thru Lugs. Designed for use in Canada
Features
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard equipped with tin plated copper bussing
- ORGANIZED – Notches stamped into the enclosure for cable ties promote secure and neat wiring.
Technical Information
Color: Gray
Warranty: 10-Year Limited
Amperage: 200 A
Short Circuit Current Rating: 22 KA
Spaces / Circuits: 8 / 8
Type of Load Center: Meter Main
Voltage: 120/240 VAC
Busbar Material: Copper, Bright Tin-Plated
Busbar Rating: 225A
Dimensions: 37.11" H x 16.47" W x 5.2" D
Enclosure Material: Galvanized Steel, Gray Baked Enamel
Ground Connection: 4 AWG - 2/0 AWG Cu/Al
Supply Connections: 6 AWG – 350 MCM
Weight: 56.8 lbs
NEMA Enclosure Type: NEMA 3R Outdoor
Operating Temperature: -40°C to 70°C
In Compliance with CSA Std. C22.2 No.29, 94.2 and 0.19 as well as Standards UL 50, UL 50E, UL 67 and UL 869A
